Space Efficient Security Barrier Compact Design Bi-Directional Passage Control electronic turnstile gates

Introduction

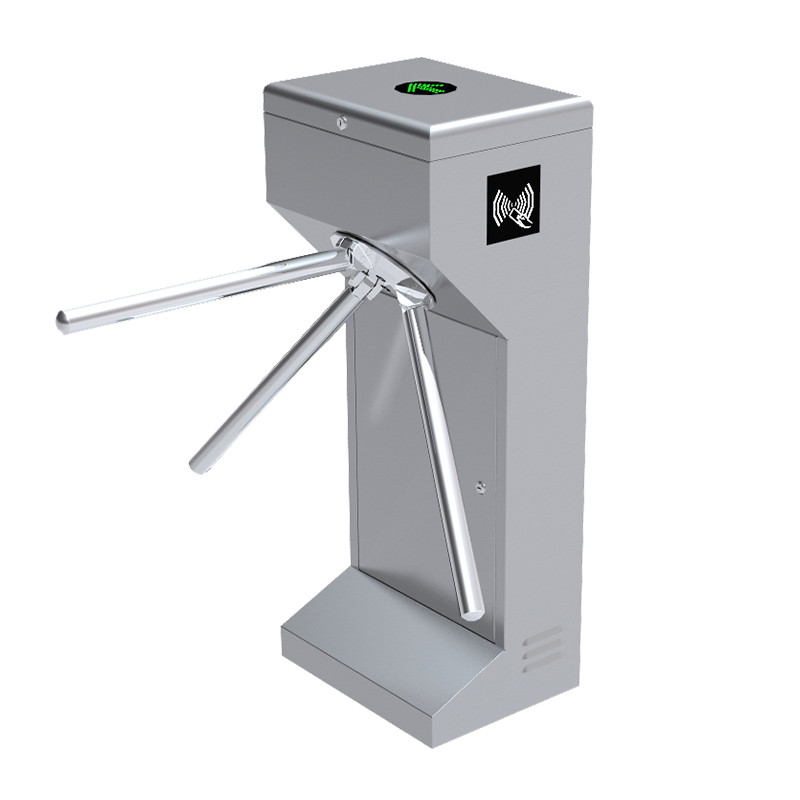

Our Tripod Turnstiles are a form of gate which allows only one person to pass at a time. This enables security to efficiently prevent potential trouble or to restrict any prohibited materials to enter into any secured premises.

It can restrict passage only to people who insert /scan a ticket, an ID cards, access card , thus a turnstile can be used in the case of paid access for example public transport, or to restrict access to authorized people in corporate houses or entrances of any building.

Features

1. Space efficient security barriers with a compact design having overall size 480 mm x 280 mm x 980 mm.
2. Bi-directional passage control
3. Inbuilt anti trailing design – when the tri arm rotates 60°, it locks automatically & avoids it rotating back
4. Durability with minimal maintenance means years and millions of trouble free passages
5. Turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby
6. Turnstiles are often used for monitoring and counting the numbers of people passing through a gate
7. Sleek magnificent Pillar & Bridge type tripod turnstile design used to control the pedestrian flow smoothlyEasy installation & easy to incorporate with existing systems
8. Steady & noiseless operation
9. It’s unique dropping arm feature provides a fail-safe safety solution in case of an emergency or power failure.
10. Hosing available in stainless steel 304, 316
11. Comes with shock absorber feature with heavy 1.2 mm housing thickness.
12. Bi-directional passage control Tripod turnstile gates are available in automatic and manual versions.

Do you need to control access to your building or premises?

Turnstiles provide a great way of securely controlling pedestrian access to buildings, offices and public outdoor areas. Whether you are looking to install a turnstile system to increase security at your building’s entrance or help control the flow of pedestrians into your building, there will be a turnstile to suit your requirements.

Specifications

MAIN FUNCTION AND FEATURES

1. Mechanical drive unit eliminate the use of expensive electric motor and reduce maintenance cost. Lock mechanism is based on heavy duty solenoid to ensure longer life time and lesser maintenance.

2. Turnstile can be configured to be bi-directional or uni-directional. Built in acrylic plate for easy integration with other devices.

3. If arm rotate more than half, It will auto-rotate to the next idle position If arm rotated less than half, it will auto-rotate back to the current idle position. Built in adjustable tension spring to control auto-rotate force of arm and minimize auto-rotation.

4. DC operation, built in circuit breaker to protect against mild electric surge.

5. Anti-tailgating. Smart lock mechanism uses limit switch to detect rotation and effectively re-lock back after 1 person pass through. Also support time delay 5 sec, 10 sec, 15 sec and 60 sec.

6. During power failure, arm will drop automatically allowing free pass through. Internal parts inside the housing are locked via a key to avoid tampering.

7. Built in LED to indicate direction. Once unlock, arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

WHY CHOOSE SINOMATIC

1. Our Factory has more than 20 years OEM/ODM experiences in the line of access control turnstile and barrier and road blocker.

2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.

3. We accept OEM/ODM orders to meet the requirements of clients.

4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
